STIKON™ Mini Surface Platinum RTD (RdF Models 29222 & 29223)
This 100Ω DIN-IEC sensor is refractory sealed for ±0.05°C stability. Its extremely small and thin design allows this flexible package to easily conform on complex surfaces for accurate response in milliseconds. Platinum ribbons welded within the sealed RTD provide flexibility and toughness. Moisture resistance for condensation and shallow immersion is provided by Kapton®/Teflon® lamination that completely encapsulates the assembly and lead entrance. Standard operating range is –200°C to 260°C. Clamped sensors can withstand 315°C.
Strong welded leads
Full platinum RTD stability
Flexible, tough and durable
Best for small radius surfaces and tubes
Completely sealed
Recommended for condensing environments
Strain isolated
Temperature range is -200°C to 260°C
Time constant is <0.2 seconds on metal surfaces
Long-term stability better than 0.05°C (0.02Ω) per 5 years
This 100Ω DIN-IEC sensor is refractory sealed for ±0.05°C stability. Its extremely small and thin design allows this flexible package to easily conform on complex surfaces for accurate response in milliseconds. Platinum ribbons welded within the sealed RTD provide flexibility and toughness. Moisture resistance for condensation and shallow immersion is provided by Kapton®/Teflon® lamination that completely encapsulates the assembly and lead entrance. Standard operating range is –200°C to 260°C. Clamped sensors can withstand 315°C.
Strong welded leads
Full platinum RTD stability
Flexible, tough and durable
Best for small radius surfaces and tubes
Completely sealed
Recommended for condensing environments
Strain isolated
Temperature range is -200°C to 260°C
Time constant is <0.2 seconds on metal surfaces
Long-term stability better than 0.05°C (0.02Ω) per 5 years
This 100Ω DIN-IEC sensor is refractory sealed for ±0.05°C stability. Its extremely small and thin design allows this flexible package to easily conform on complex surfaces for accurate response in milliseconds. Platinum ribbons welded within the sealed RTD provide flexibility and toughness. Moisture resistance for condensation and shallow immersion is provided by Kapton®/Teflon® lamination that completely encapsulates the assembly and lead entrance. Standard operating range is –200°C to 260°C. Clamped sensors can withstand 315°C.
Strong welded leads
Full platinum RTD stability
Flexible, tough and durable
Best for small radius surfaces and tubes
Completely sealed
Recommended for condensing environments
Strain isolated
Temperature range is -200°C to 260°C
Time constant is <0.2 seconds on metal surfaces
Long-term stability better than 0.05°C (0.02Ω) per 5 years
Available online with 40 inch leads. For custom lead lengths, please contact the factory at sales@rdfcorp.com.
| Sensing Element | Temperature Range | Ice Point Resistance | Time Constant |
|---|---|---|---|
| International grade thin film platinum a = 0.00385 Ω/Ω/°C per IEC 751 | TFE Teflon® leads: –200°C to 260°C (–320°F to 500°F) | 100Ω thin film platinum, a = 0.00385 Ω/Ω/°C | <0.2 Seconds on metal surfaces |
| Self Heating | Interchangeability | Long Term Stability | Insulation Resistance |
| > 15 mW/°C mounted | ±(0.3°C @ 0°C + 0.005 |t|°C) IEC 751 Class B above –50°C |
Better than 0.05°C (0.2Ω) per 5 years above –50°C | > 50 MegOhms at 50VDC at 25°C |
| Maximum Current | Recommended Current | Case Material | Lead Materials |
| 5 mA for limited self heating | 1 mA maximum | Kapton® sensor is refractory passified overall before lamination | 28 AWG nickel coated, stranded copper, PFA Teflon® insulated, 2 parallel conductors |
| Size | Thickness over Sensor | Thickness over Leads | |

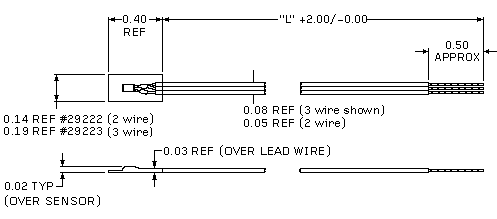

| 2-wire: 0.14" wide x 0.4" long 3-wire: 0.19" wide x 0.4" long |
0.02" | 0.03" (0.026 REF on cable) |
